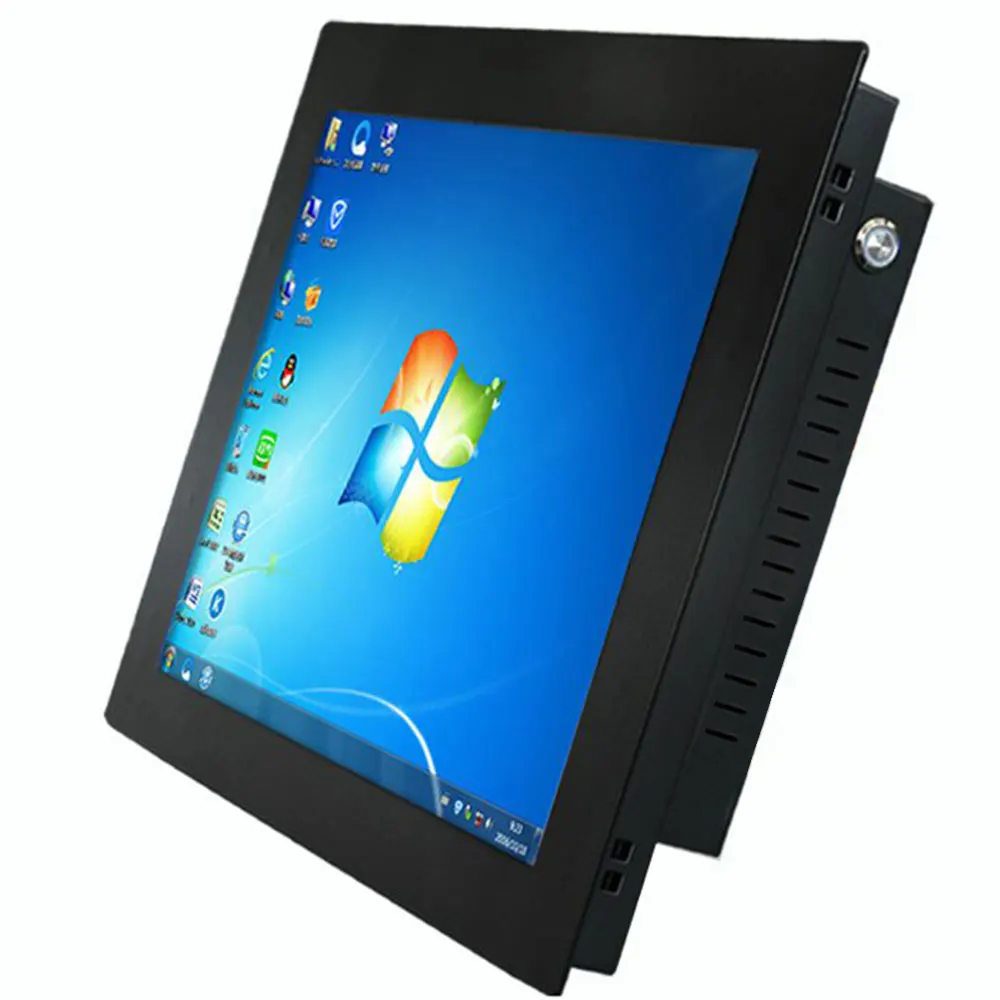

12″ 10″ 15 Inch Industrial Tablet Panel PC Desktop Computer Resistive Touch Core i3 Win XP/7/10 System USB SSD WiFi Mini PC

Industrial PC Resistive touch computer

10.4 inch(1024*768)/12.1 inch(1024*768)/15 inch(1024*768)

industrial computer parameters

Brand：Balahome

Aterial：Metal

Memory: optional 2GB/4GB/8GB DDR3 System Memory

Storage:optional 32Gb/64Gb/128Gb /256Gb/512Gb SDD

System: Support Windows XP/7/10/Linux system

Graphic: IntelHD Graphics

Color: black (customizable color)

Weight: about 5-7Kgs

System Parameter：

integrated Intel Core i3 3217U（2 cores,Level three cache: 3MB, 1.8 GHz,TDP power consumption:17w,Graphics core: Intel HD Graphics 4000）

Storage space：No SDD/32G/64G / 128G / 256G Optional）

internal storage：Optional No RAM/4GB/8GB DDR3 System memory

Parameters of LCD Touch screen：

Brightness：250cd/m2 (Need a high-brightness display, please contact us)

Contrast Ratio：1000:1

Viewing Angle：Horizontal(left/right): 150°(75°/75°)

Vertical(up/down): 150°(75°/75°)

Response Time：30 (Typ.)(Tr+Td) (ms)

Frame Rate：60Hz

Color system：PAL/ NTSC

Interface：1 x VGA + 1 x HDMI + 2 * COM (default 232 protocol interface) +1 x RJ45 + 4 * USB + 1 x audio

power requirement of system：+ 12V DC power input

Power adapter：input：100〜250VAC，50 / 60Hz

output：60W Adapter（12V 5A）

Working temperature：-20°C〜60°C

Relative humidity：0％〜90％relative humidity, no condensatio

Plug：AU,EU,USA,UK plug available

Menu Languages：English,,Francais,Italiano,Deutsch,Espanol,Russian,Traditional Chinese, Simplified Chinese,etc

VISA Hole distance：75*75mm

Delivery Time

Sample:1~5 working days.

10~100pcs:2~7 working days.

More than 100pcs :5~15 working days

★★★ SPECIAL REMINDER ★★★

LOGO/Product Model/Case Material/Add Touch Function/Add Built-in Speaker/Add Remote Control Function/Base Style/Screen Size/Interface Type/Power Type/Installation Mode(Wall-hang/Embedded/Open-frame),etc.,can be customized for you(But need to meet the requirements of MOQ).If you have this demand,please contact us,we will provide you with timely and thoughtful service!

Size

Resolution: 10.4 inch(1024*768)/12.1 inch(1024*768)/15 inch(1024*768)

Unit of measure: mm

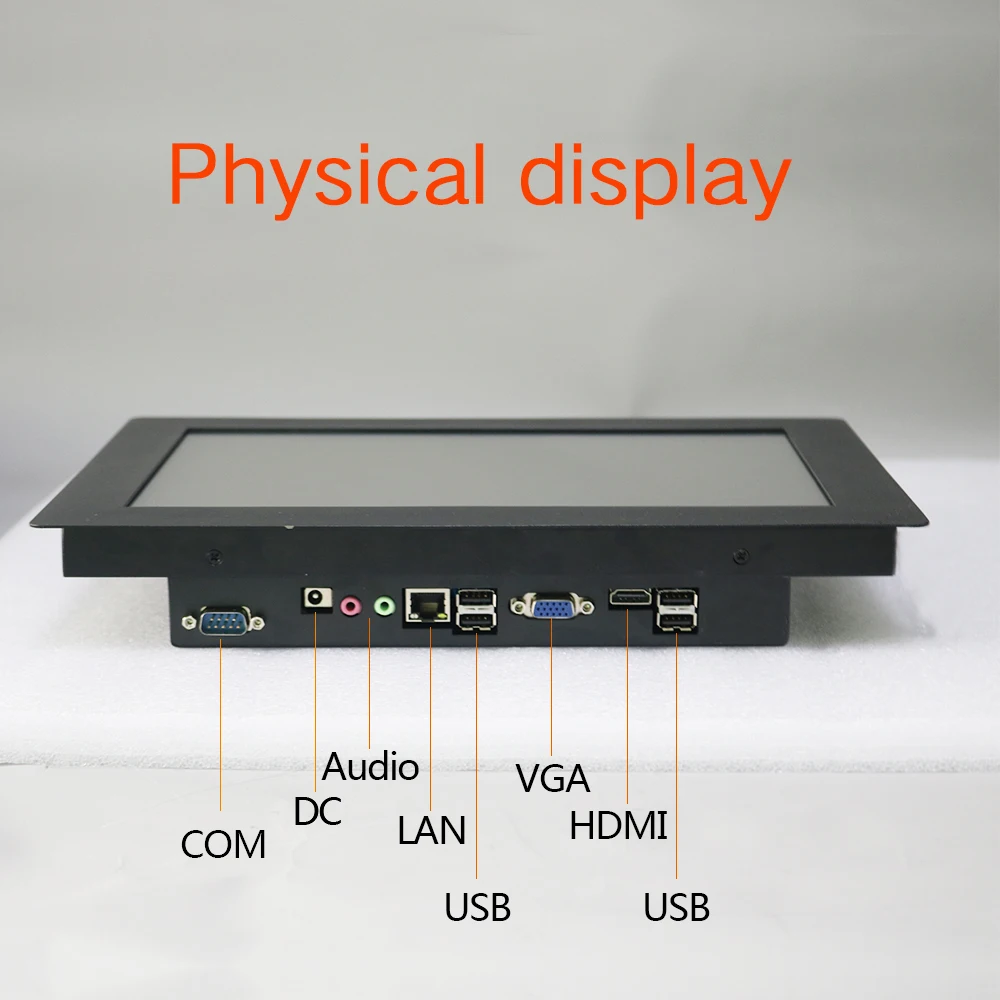

Product interface (support customization)

1 x VGA + 1 x HDMI + 2 * COM (default 232 protocol interface, please contact us to customize 485 protocol interface) +1 x RJ45 + 4 * USB + 1 x audio

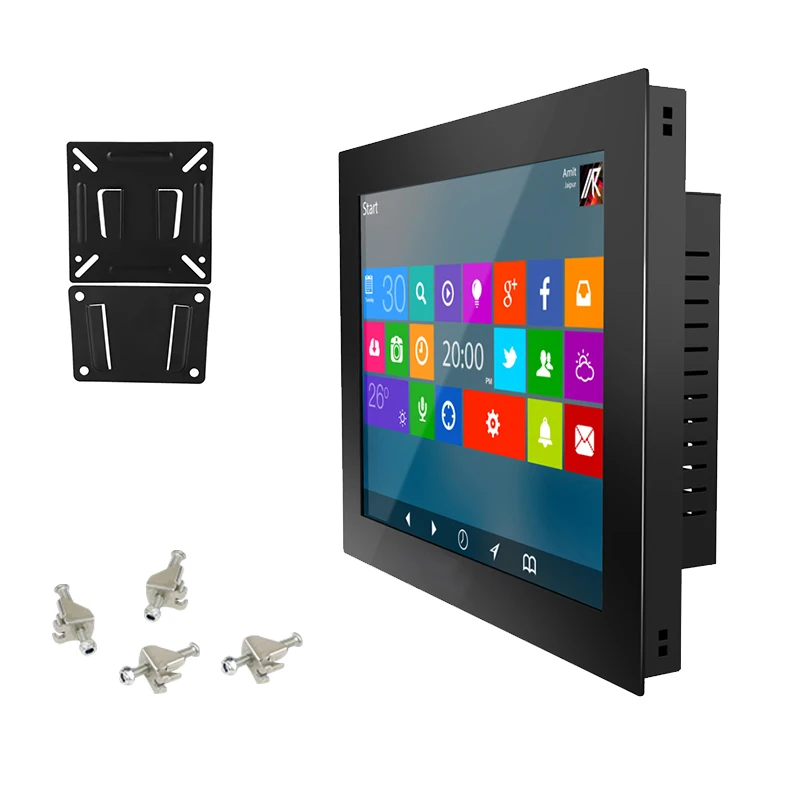

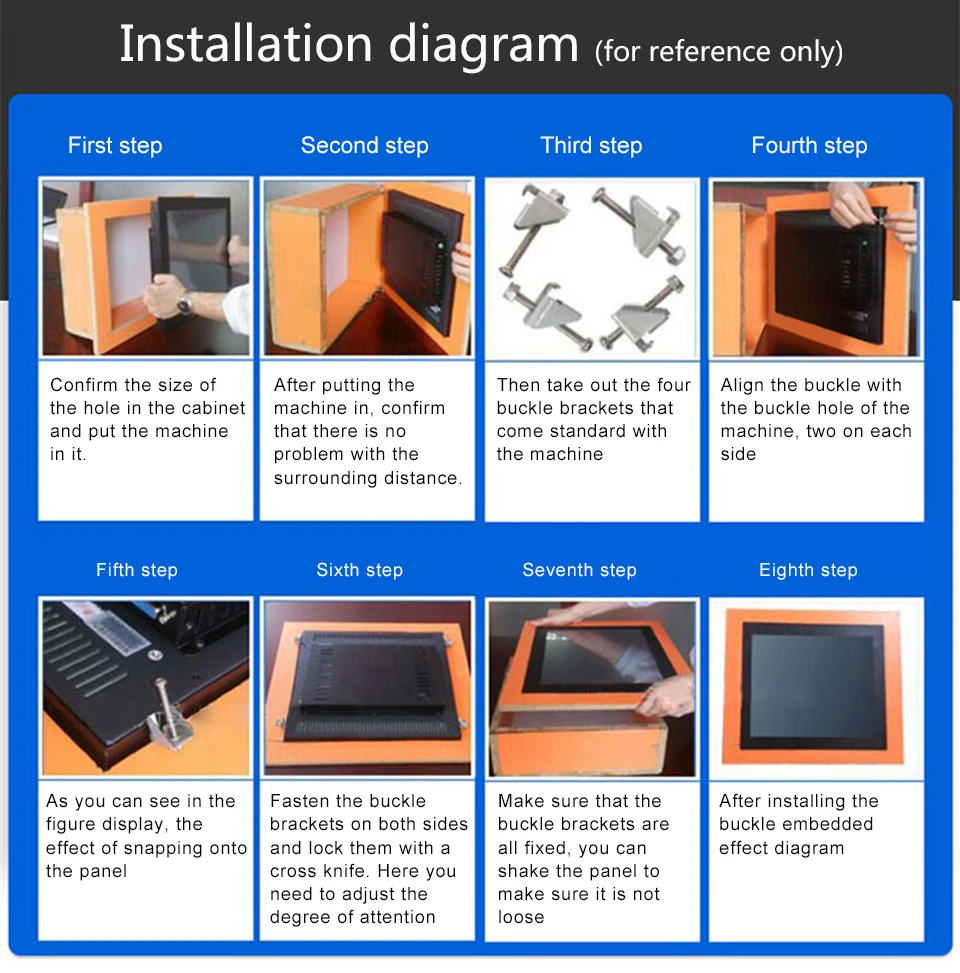

Installation Mode

There are eight small holes behind the product, the distance between the four installation holes inside is 75mm x 75mm, and the outside four mounting holes are 100mm x 100mm, equipped with wall hanging installation accessories and embedded installation accessories, the installation mode is flexible, and the following installation methods are for reference only.

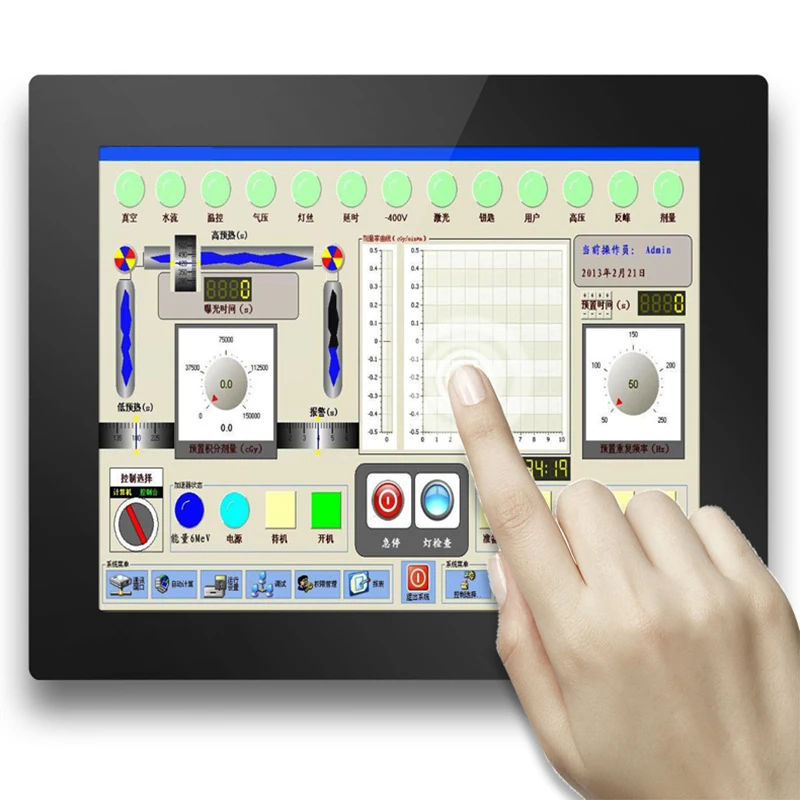

Sensitive Touch Rapid Response

Resistive touch times > 35 million times, backlight life 50000h

Industrial-grade custom motherboard

A variety of industrial motherboards are available, with high-performance processors and low noise consumption. First choice for industrial use, stable operation in harsh environments.

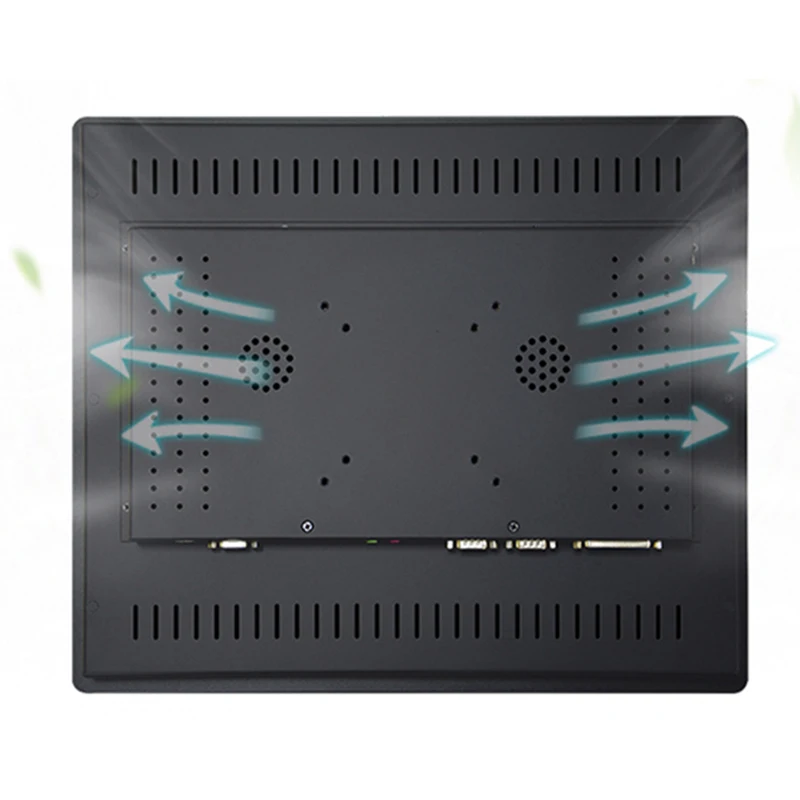

The machine runs stably

24/7 stable operation

Efficient work for a long time, fast cooling

Metal case, resist to high and low temperature environment

Industrial cold-rolled sheet metal shell, cold and high temperature resistance, as low as -20 ℃ ~ 60 ℃.

Can effectively adapt to stable work in harsh environments

About customization

Please contact customer service to state your needs.

Support logo, shell, color, function, interface and other customization, please contact us for the best price

Product application field display

Products are widely used in industrial control CNC industry, medical industry, factory production workshop,

Bank automatic ticket vending machines, supermarket advertising, video surveillance, etc.
